What Is an ASRS Shuttle System?
An ASRS shuttle system is an advanced automated warehouse solution that combines Automated Storage and Retrieval System (ASRS) technology with high-speed shuttle robots to store and retrieve goods inside high-density racking structures.
Unlike traditional automated warehouses that rely mainly on stacker cranes, an ASRS shuttle warehouse uses multiple shuttle vehicles operating simultaneously across rack levels to transport pallets, totes, or cartons between storage locations and workstations.
The integration of automation, robotics, and warehouse management software allows companies to significantly increase storage density, reduce labor costs, and improve inventory accuracy.

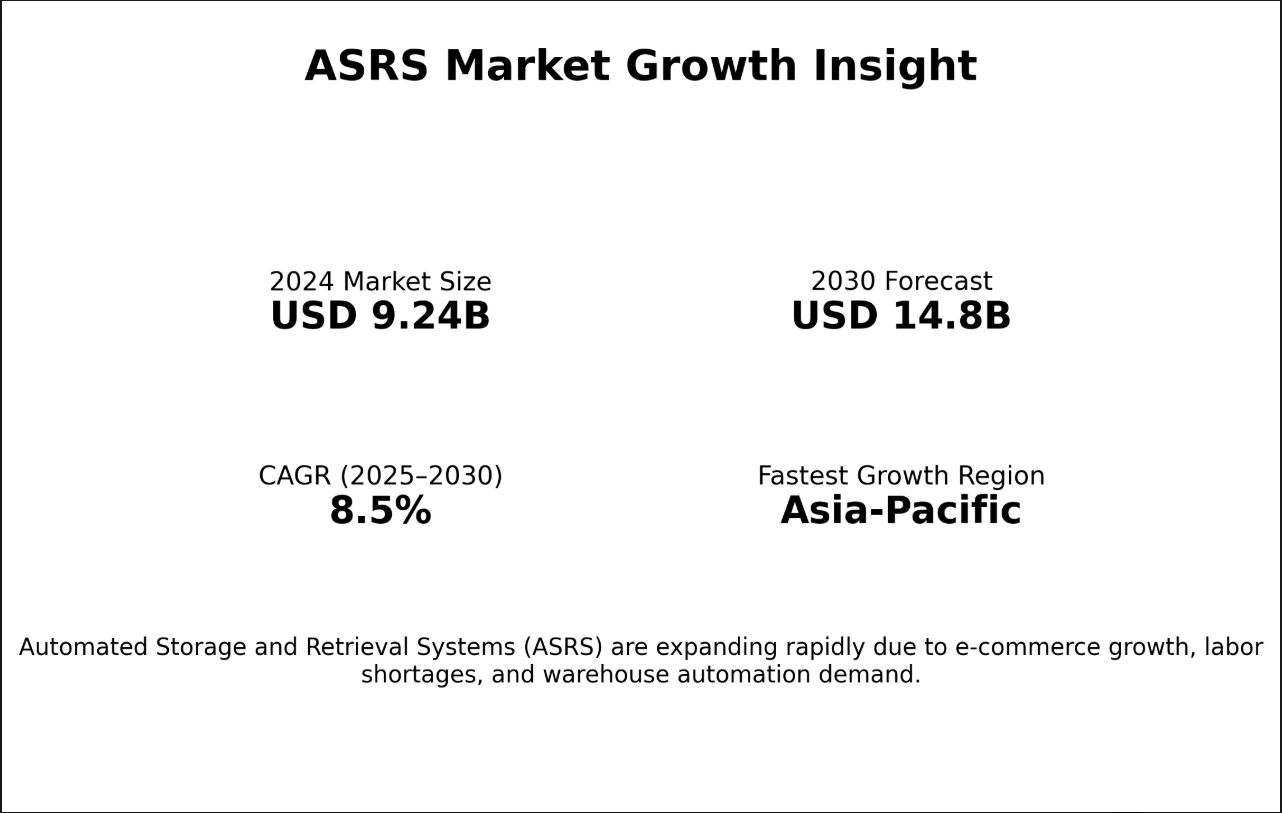

According to a report by MarketsandMarkets, the global ASRS market is expected to grow from $9.86 billion in 2025 to over $14.8 billion by 2030, with shuttle-based systems becoming one of the fastest-growing technologies in warehouse automation.
How an ASRS Shuttle System Works
An ASRS shuttle system integrates several automated components to manage warehouse storage operations efficiently.
Typical system components include:
shuttle robots
vertical lifts or hoists
high-density racking systems
conveyor systems
warehouse control system (WCS)
Standard Operation Process
1. Products arrive at the warehouse receiving area.
2. Barcode or RFID scanners identify each pallet or container.
3. Conveyors transport goods to the storage interface.
4. Shuttle robots move goods into rack storage locations.
5. The WMS tracks inventory locations in real time.
6. When orders are generated, shuttles retrieve items automatically.
This automated workflow minimizes manual handling and ensures accurate inventory management.
Key Advantages of ASRS Shuttle Systems
High Storage Density
One of the biggest benefits of an ASRS shuttle system is its ability to maximize warehouse space.
High-density racking combined with automated shuttle movement allows deeper storage lanes and taller warehouse structures.
Storage System | Space Utilization |
Traditional Pallet Racking | 40–50% |
Drive-In Racking | 60–70% |
ASRS Shuttle System | 80–90% |
This improvement can dramatically increase warehouse capacity without expanding building space.
High Throughput and Efficiency
Because multiple shuttle robots operate simultaneously, an ASRS shuttle warehouse can handle a large volume of inventory movements.
Typical performance parameters include:
Parameter | Typical Value |
Shuttle Speed | 1–2 m/s |
Warehouse Height | Up to 40 m |
System Throughput | 1000–3000 pallets/hour |
Inventory Accuracy | >99% |
This makes shuttle-based ASRS solutions ideal for high-volume logistics operations.
Reduced Labor Costs
Automation significantly reduces the need for manual forklift operations.
Cost Factor | Improvement with ASRS Shuttle |
Labor Requirement | Reduced by 30–60% |
Operational Errors | Reduced by 70% |
Order Processing Speed | Increased by 40% |
For many companies, these efficiency gains lead to a return on investment within 3–5 years.

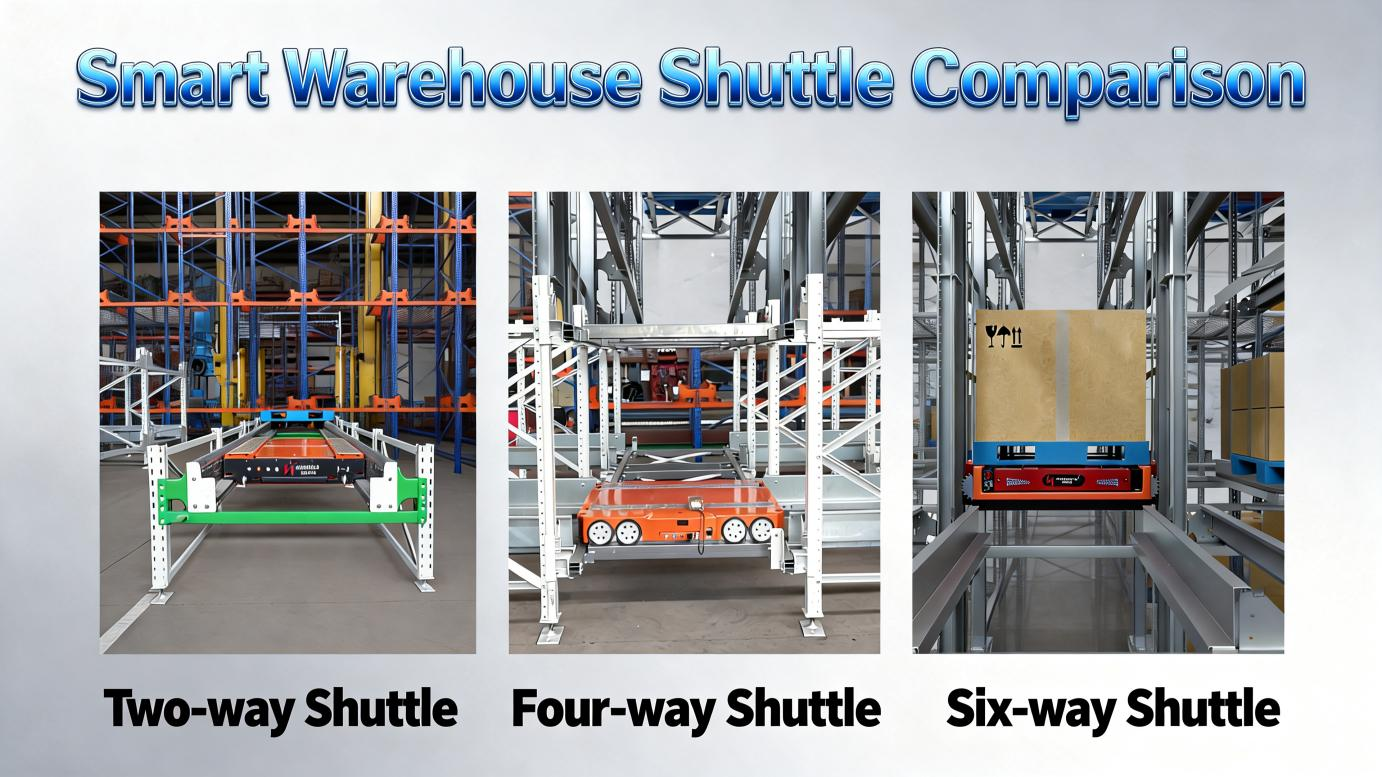

Types of ASRS Shuttle Systems
There are several types of ASRS shuttle systems designed for different warehouse environments.

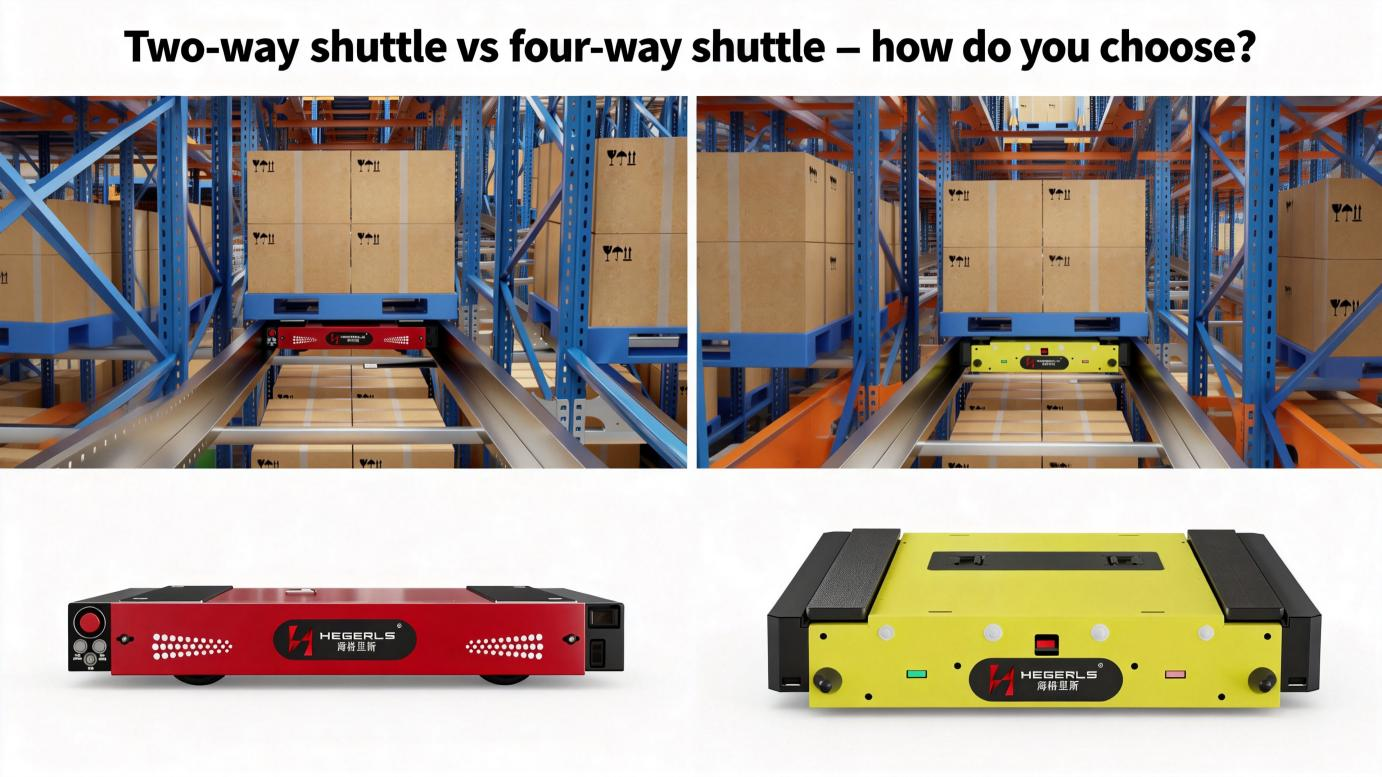

Shuttle Type | Description | Typical Application |
Two-Way Shuttle System | Moves forward and backward in storage lanes | Medium-density warehouses |

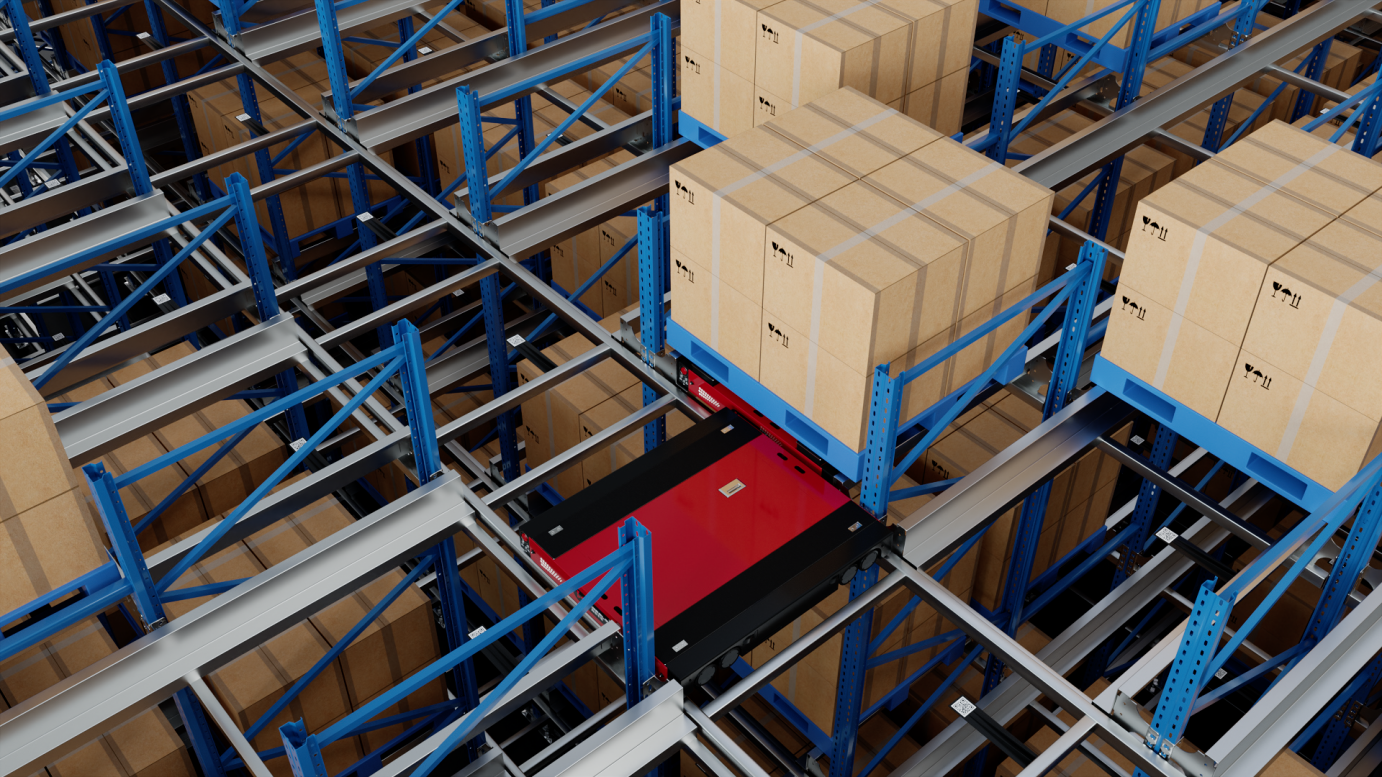

Four-Way Shuttle System | Moves in multiple directions across racks | High-density automated warehouses |
Six-Way Shuttle System | Allows multi-directional movement with rotation | Complex logistics layouts |
Mother-Child Shuttle System | Combines aisle shuttle with smaller lane shuttles | Large automated distribution centers |
Tote Shuttle System | Designed for cartons or bins | E-commerce fulfillment |
Each type provides different levels of flexibility, throughput, and storage density.
Need an ASRS Shuttle System for Your Warehouse?
Choosing the right ASRS shuttle system requires careful planning of warehouse layout, storage density, throughput requirements, and automation level. Different shuttle technologies such as two-way shuttles, four-way shuttles, six-way shuttles, and mother-child shuttle systems can be configured to match specific logistics needs.
HEGERLS specializes in designing custom automated shuttle warehouse solutions for manufacturing, retail distribution, and logistics centers worldwide.
Our engineers can help you:
Evaluate your warehouse layout and storage capacity
Select the most suitable ASRS shuttle configuration
Optimize warehouse throughput and efficiency
Design a scalable automation system for future growth

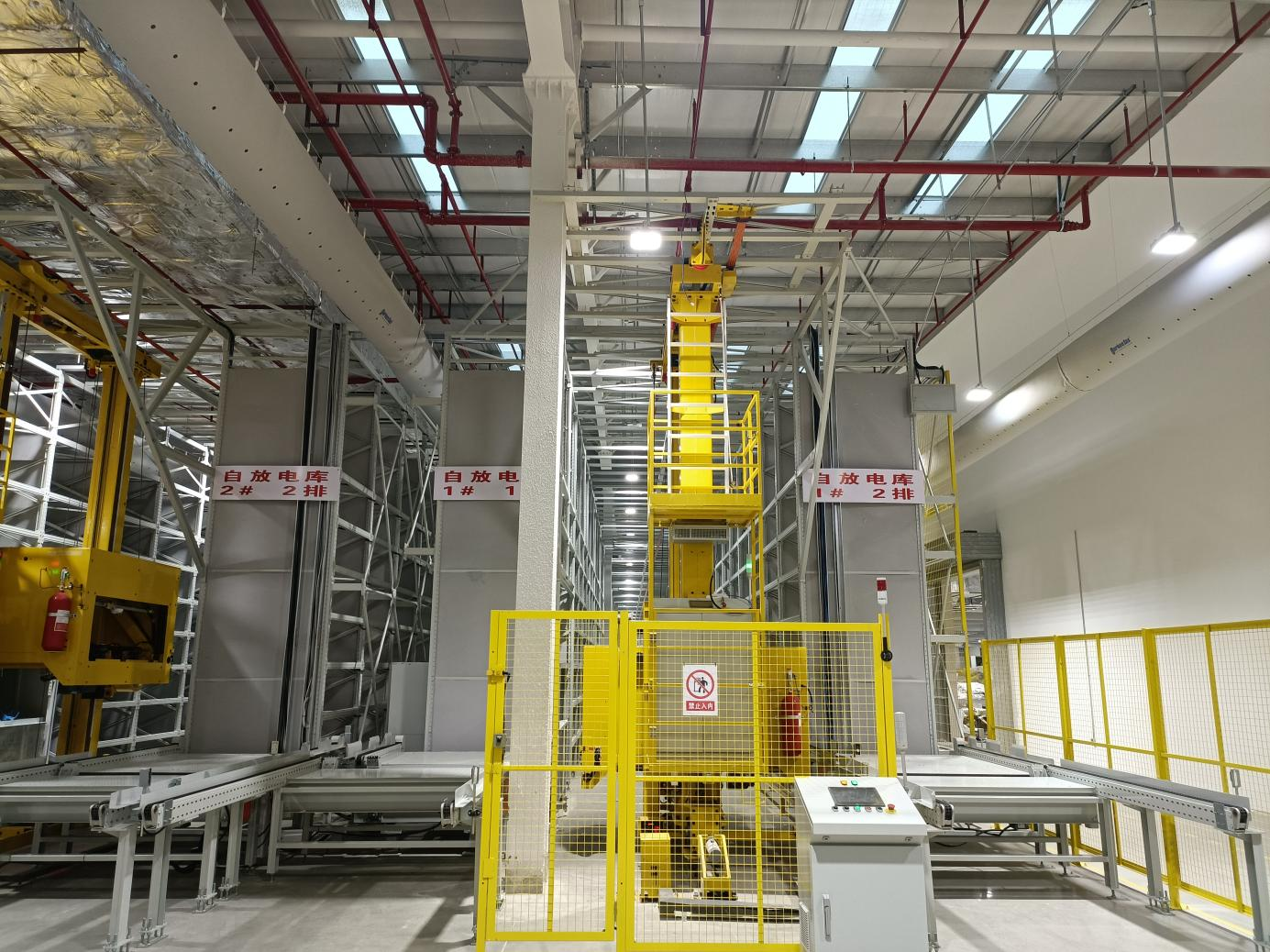

ASRS Shuttle System vs Traditional ASRS
Many companies evaluating warehouse automation compare stacker crane ASRS with shuttle-based ASRS systems.
Feature | Stacker Crane ASRS | ASRS Shuttle System |
Storage Density | High | Very High |
System Flexibility | Medium | High |
Throughput | Moderate | Very High |
Scalability | Limited | Easily expandable |
Equipment Redundancy | Low | High |
Shuttle systems often provide better scalability because additional shuttle robots can be added to increase system capacity.
Industries Using ASRS Shuttle Systems
Modern logistics operations across many industries rely on ASRS shuttle warehouses.
Industry | Application |
E-commerce | Order fulfillment centers |
Retail | Distribution warehouses |
Manufacturing | Raw material storage |
Cold chain | Frozen food warehouses |
Pharmaceutical | Controlled inventory storage |
According to LogisticsIQ, warehouse automation adoption is growing at a CAGR of over 14% globally.
Example Layout of an ASRS Shuttle Warehouse
A typical shuttle-based automated warehouse may include:
high-density racking up to 30 meters high
dozens of shuttle robots operating simultaneously
automated conveyor systems connecting receiving and shipping areas
intelligent warehouse management software
Example system specifications:
Parameter | Example Value |
Warehouse Height | 24 m |
Storage Capacity | 40,000 pallet locations |
Shuttle Robots | 20 units |
System Throughput | 1200 pallets/hour |
These facilities are commonly used in large logistics distribution centers and manufacturing plants.
Want to Build a High-Density ASRS Shuttle Warehouse?
Many companies are upgrading from traditional pallet racking to ASRS shuttle systems to increase warehouse capacity and improve logistics efficiency.
With HEGERLS automated warehouse solutions, you can:
Increase warehouse storage density by up to 90%
Reduce labor dependency and operational errors
Improve order processing speed and inventory accuracy
Scale your warehouse automation as business grows
Our engineering team will design a custom ASRS shuttle warehouse layout based on your facility size, pallet specifications, and throughput targets.
Future Trends of ASRS Shuttle Technology
Warehouse automation continues to evolve rapidly.
AI-Driven Warehouse Optimization
Artificial intelligence will enable shuttle systems to automatically optimize storage allocation and robot movement paths.
Digital Twin Simulation
Many companies now use digital twin technology to simulate warehouse operations before construction.
This reduces project risk and improves system design efficiency.
Integration with Robotics
Future automated warehouses will integrate ASRS shuttle systems with other robotics technologies such as:
AGVs
AMRs
robotic picking systems
automated conveyor networks
These technologies will create fully autonomous smart warehouses.
Why Companies Are Choosing ASRS Shuttle Systems
Compared with conventional warehouse storage methods, ASRS shuttle systems provide unmatched efficiency and flexibility.
Companies adopting shuttle-based automation benefit from:
higher storage density
faster inventory handling
reduced operational costs
scalable warehouse automation
As global supply chains become increasingly complex, ASRS shuttle warehouses are becoming the standard solution for high-performance logistics facilities.
FAQ: ASRS Shuttle System
What is an ASRS shuttle system?
An ASRS shuttle system is an automated warehouse solution that uses shuttle robots to store and retrieve pallets, cartons, or totes in high-density racking systems.
How efficient is an ASRS shuttle warehouse?
Modern shuttle systems can achieve 80–90% space utilization and process thousands of inventory movements per hour.
What industries benefit most from ASRS shuttle systems?
Industries such as e-commerce, manufacturing, retail logistics, cold chain, and pharmaceuticals benefit significantly from automated shuttle warehouses.
Start Your ASRS Shuttle Warehouse Project
As warehouse automation becomes essential for modern supply chains, more companies are investing in ASRS shuttle systems to achieve higher efficiency and smarter inventory management.
Whether you are planning a new automated warehouse or upgrading an existing storage facility, HEGERLS can provide a complete solution—from system design and equipment manufacturing to installation and integration.
HEGERLS ASRS Shuttle Solutions Help You:
Increase storage capacity without expanding warehouse space
Improve warehouse throughput and operational efficiency
Reduce labor costs and forklift traffic
Build a scalable smart warehouse infrastructure
Our specialists are ready to evaluate your project and provide a custom warehouse automation proposal.
